In-Ground scissor car lift 5.5 Ton – TEK505

Name: In-Ground scissor car lift 5.5 Ton - TEK505
SKU: 9989
Price: 29000.00 AED
Availability: InStock

AED 29,000.00 + VAT

OverView

TEK505

Category: Scissor

Description
Specifications

Description

Product Description

Heavy-Duty Ground-Mounted Scissor Lift (5.5 Ton) with Integrated Sub-Scissor

High Capacity & Performance: Engineered for heavy and medium-duty vehicles with a maximum load capacity of 5.5 Tons (5,500 kg) and powered by a 4 kW electric motor.
Dual-Lifting System: Features a primary scissor lift reaching a maximum height of 1805 mm, along with an integrated secondary (sub-scissor) lift reaching up to 445 mm—ideal for wheel, brake, and suspension servicing.
Versatile Platform Design: Generous 5.03-meter total platform length with an extendable sub-scissor platform (1.63 m to 2.16 m) to accommodate various vehicle wheelbases.
Low Profile & Safe Operation: A low collapsed height of 340 mm allows smooth drive-on for low-clearance vehicles, complemented by a separate control unit positioned 2.51 meters away for maximum operator safety.

Specifications

Parameter / Dimension	Description	Value / Range
Capacity (Lifting Weight)	Rated load capacity	5.5 Ton (5.5T)
Lifting Height (Main)	Maximum main lift height	1805 mm
Lifting Height (Secondary)	Sub-scissor lift height	445 mm
Min. Platform Height	Height when fully collapsed	340 mm
Main Lifting Height Range	Height range from collapsed to fully raised	340 ~ 1805 mm
Platform Length (Main)	Total main platform length	5030 mm
Platform Length (Sub-Scissor)	Extendable secondary platform length	1630 ~ 2160 mm
Base Frame Length	Ground contact base length	2500 mm
Distance to Control Box	Distance from platform edge to control unit	2510 mm
Single Platform Overall Width	Total width of one platform	630 mm
Single Platform Effective Width	Usable width of platform surface	580 mm
Sub-Scissor Width	Width of secondary lift platform	580 mm
Distance Between Platforms (Clear)	Inner clearance distance between platforms	880 mm
Center-to-Center Distance	Distance between platform centerlines	1510 mm
Extension Section Width	Width of extension section	515 mm
Motor Power	Electric motor rating	4 kW

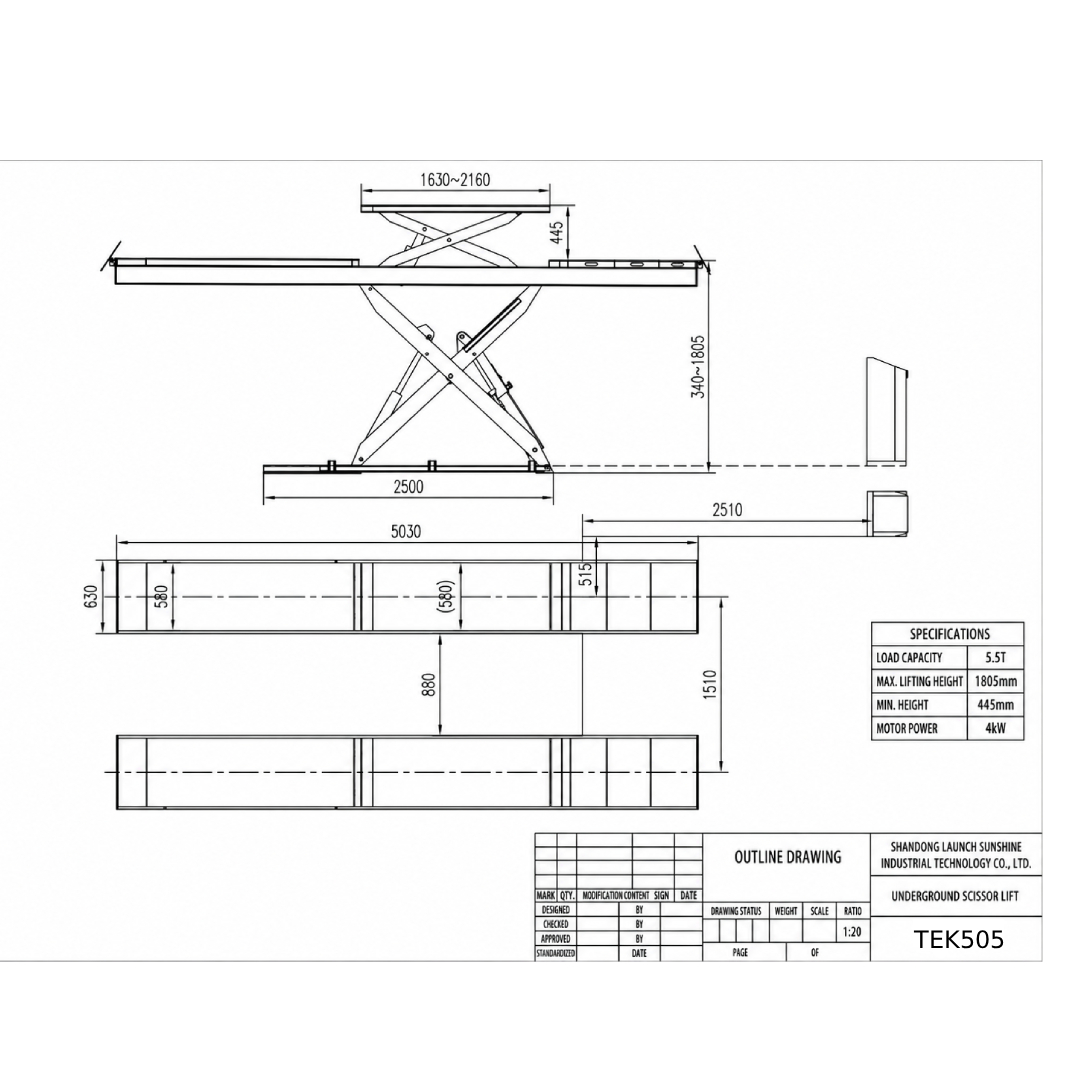

Drawing Scale	Technical drawing scale factor	1:20
