Rotary Screw Air Compressor System | TE-5-0.45

OverView

TE-5-0.45

Category:

Description

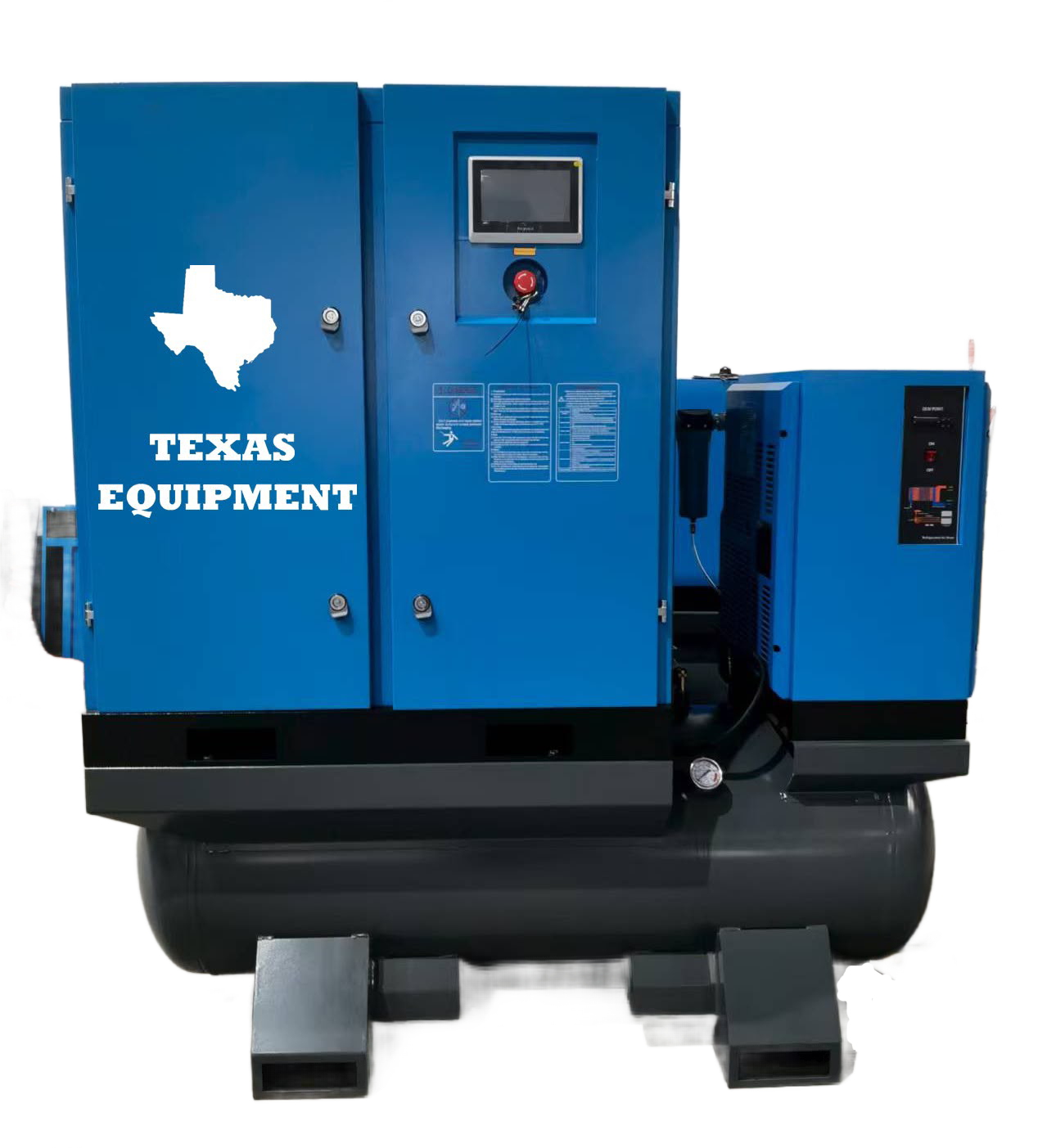

The TE-5-0.45 is a compact, high-efficiency air-cooled industrial air compressor package equipped with a variable frequency soft start system for optimal energy savings. It features a reliable 3.7 kW (5 HP) motor, an integrated air dryer with R134a refrigerant, four line filters, and a 250-liter air storage tank. Engineered for dependable continuous operation, this system comes with a 2-year comprehensive warranty.

Specifications

Category Parameter Specification
General Model
TE-5-0.45
Pressure
1.0 MPa / 10 Bar
Flow Rate
0.45 m³/min
Exhaust Temperature
Ambient temperature +10°C
Ambient Temperature
<= 46°C
Operation Model
Variable Frequency Soft Start
Cooling Model
Air-cooled
Voltage
220V / 50Hz / 3PH
Dimensions (Overall)
1520 * 670 * 1320 mm
Net Weight
235 kg
Connection Size
G3/4″
Warranty 2 Years
Motor Motor Power
3.7 kW / 5 HP
Insulation Class
F Class
Motor Speed
3600 RPM
Service Factor
1.2
Protection Level
IP55
Air Dryer Flow Rate
1.2 m³/min
Refrigerant
R134a
Pressure Range
0.7 MPa – 1.6 MPa
Dew Point
2°C – 10°C
Dimensions (Dryer)
520 * 410 * 725 mm
Air Tank Capacity
250 L
Line Filter Quantity
4 PCS
