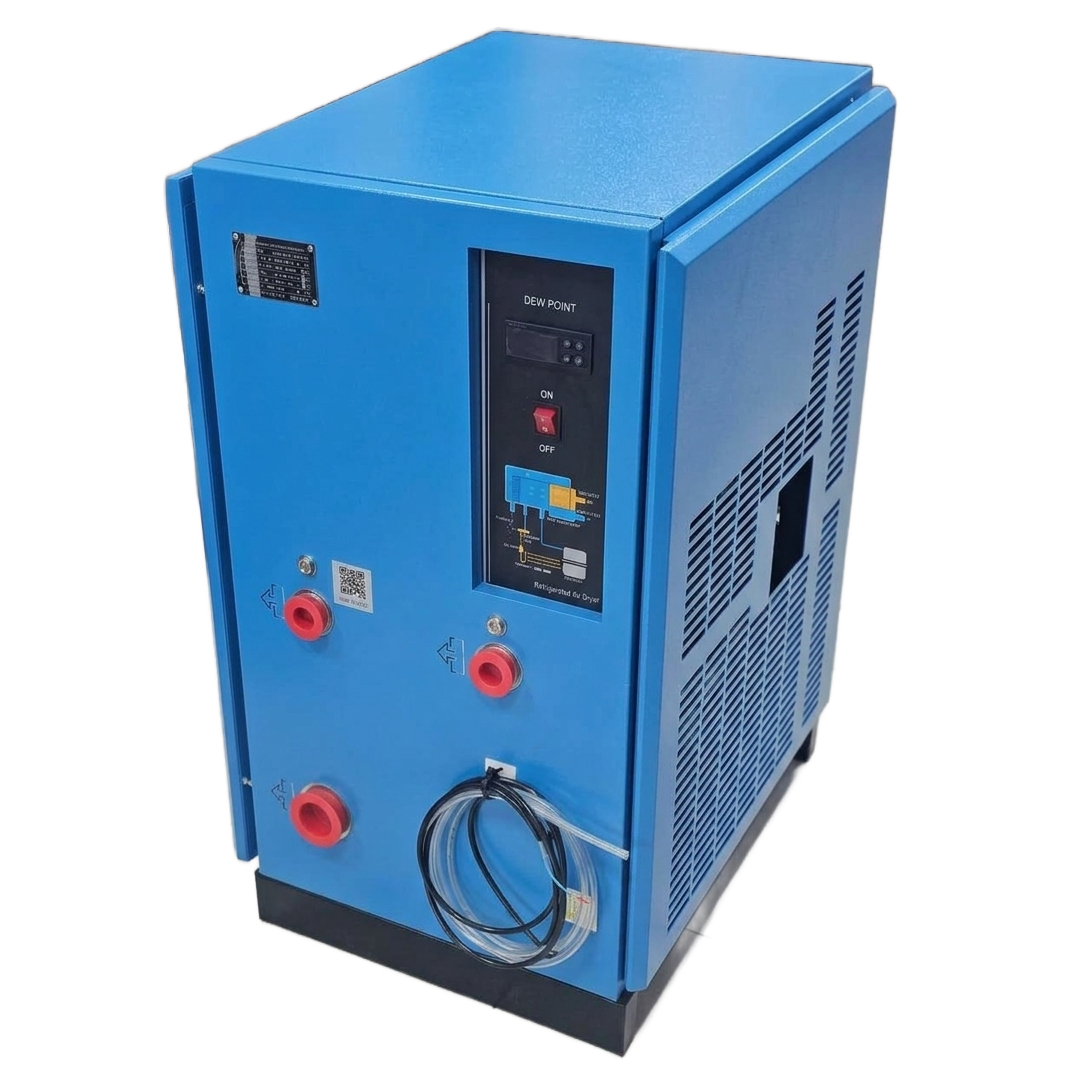

TR-02 Refrigerated Compressed Air Dryer

OverView

TR-02

Category:

Description

The TR-02 is a high-efficiency refrigerated compressed air dryer designed to reliably remove moisture from compressed air systems. Equipped with a microcomputer automatic control system with a dew point temperature display, a copper tube fin condenser, and an aluminum alloy plate heat exchanger, it delivers stable dew points of 2°C to 10°C. Engineered for energy efficiency and continuous industrial performance, this unit comes with a 1-year warranty.

Specifications

Category Parameter Specification
General Model
TR-02
Capacity
2.8 Nm³/min (P=101325Pa, T=20°C, RH 75%)
Warranty 1 Year
Operating Conditions Inlet Pressure
0.7 – 1.6 MPa
Inlet Temperature
<= 65°C
Pressure Dew Point
2°C – 10°C
Ambient Temperature
< 40°C
Refrigeration System Compressor
6RS102ECB21/WHP01900BSX-F3BU4
Refrigeration Capacity
1.3 kW
Refrigerant
R134a
Refrigerant Charge
460g
Condenser
Copper Tube Fin Type
Evaporator
High-efficiency Aluminum Alloy Plate Heat Exchanger
Electrical System Voltage
AC 1Ø 220V / 50Hz
Control System
Microcomputer automatic control with dew point temperature display
Input Power
0.53 kW
Full Load Current
2 A
Connection Compressed Air
RC3/4″
Drainage
RC1/2″
Dimensions & Weight Dimensions (L x W x H)
520 * 410 * 725 mm
Weight
39 kg
