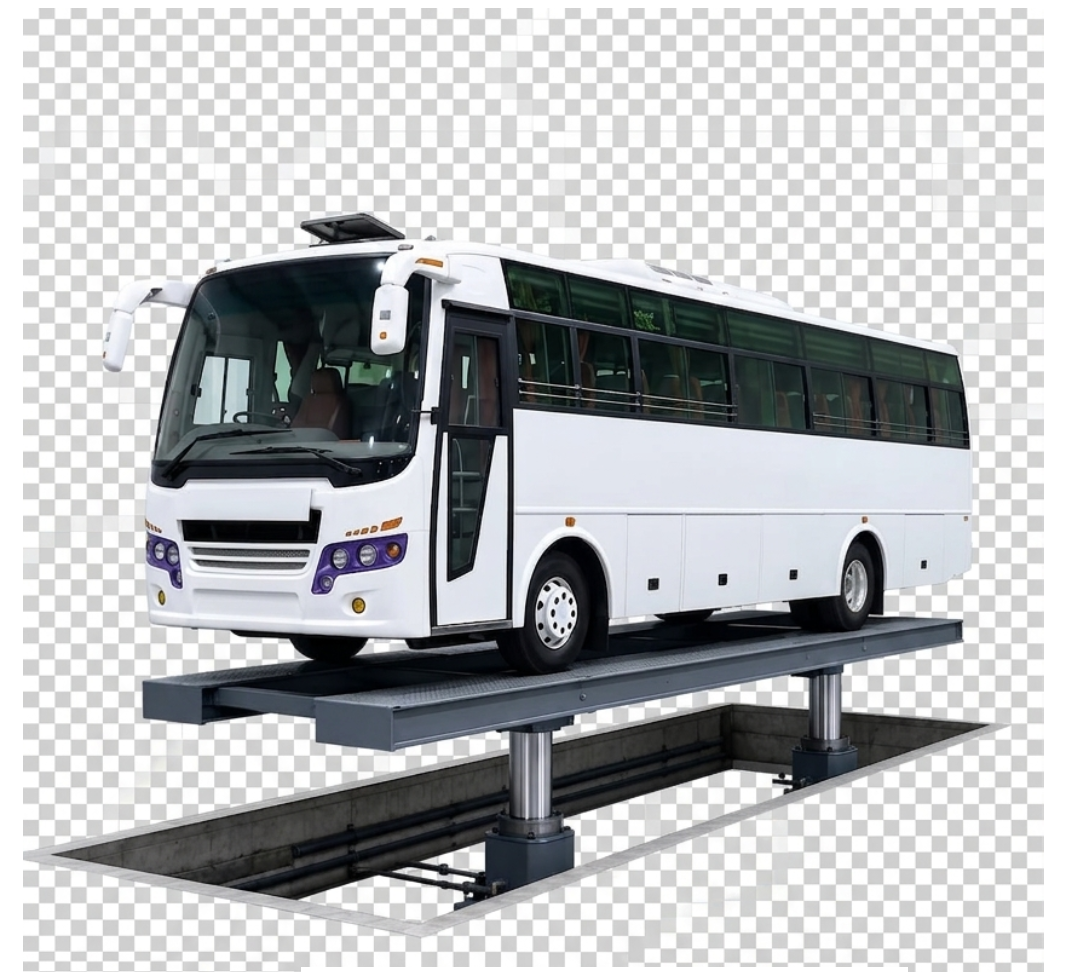

16-Ton Hydraulic Vehicle Washing Jack (Washing Lift Assembly)

AED 29,000.00 + VAT

OverView

A heavy-duty twin-post hydraulic washing jack designed for commercial vehicle service and wash stations. It features a maximum lifting capacity of 16 tons and is equipped with dual hydraulic plungers, dual oil storage tanks, and a robust platform ramp structure to elevate heavy vehicles safely for cleaning and maintenance.

Data sheet : View & Downlad
File 01 : View & Downlad
File 02 : View & Downlad
File 03 : View & Downlad
Category:

Description

A heavy-duty twin-post hydraulic washing jack designed for commercial vehicle service and wash stations. It features a maximum lifting capacity of 16 tons and is equipped with dual hydraulic plungers, dual oil storage tanks, and a robust platform ramp structure to elevate heavy vehicles safely for cleaning and maintenance.

Specifications

Characteristic Specification / Details
Lifting Capacity

16 Tons Max.

Lifting Height

1450 – 1500 mm

Center Distance Between Lifts

5642 mm (18.5 Feet)

Overall Length

7600 mm – 7700 mm

Ramp Assembly Length

7595 mm

Pit / Trench Width

900 mm – 1000 mm

Oil Tank Capacity

175 Liters x 2 (Dual Tank System)

Piping System

1-1/2″ Seamless Pipe

Required Room Size

30′ Length x 20′ Width

Required Building Height

20 Feet from floor level

Main Structural Beam

250 x 125 x 7600 mm I-Section

Frequently Asked Questions!

At Texas Equipment, we believe in making your garage setup journey as smooth as possible. Our FAQ section answers the most common questions about product features, installation support, certifications, maintenance, and more—so you can make informed decisions quickly. Need more help? Our experts are just a call away.

 A: We offer a wide selection of car wash equipment, including high-pressure washers, foam tanks, underbody washers, steam cleaners, and portable wash stations tailored for workshops in the UAE.

 A: Yes, our machines are built for high-frequency commercial use, ideal for service centers, detailing shops, and fleet maintenance operations.

 A: We provide models that work with both hot and cold water systems, depending on your specific cleaning requirements and vehicle types.

A: Regular maintenance is crucial. We recommend monthly checks for filters, pressure nozzles, hoses, and pump calibration to maintain performance and avoid downtime.

 A: Yes. Texas Equipment provides complete installation, user training, and on-site demos across Dubai, Sharjah, and other Emirates.
