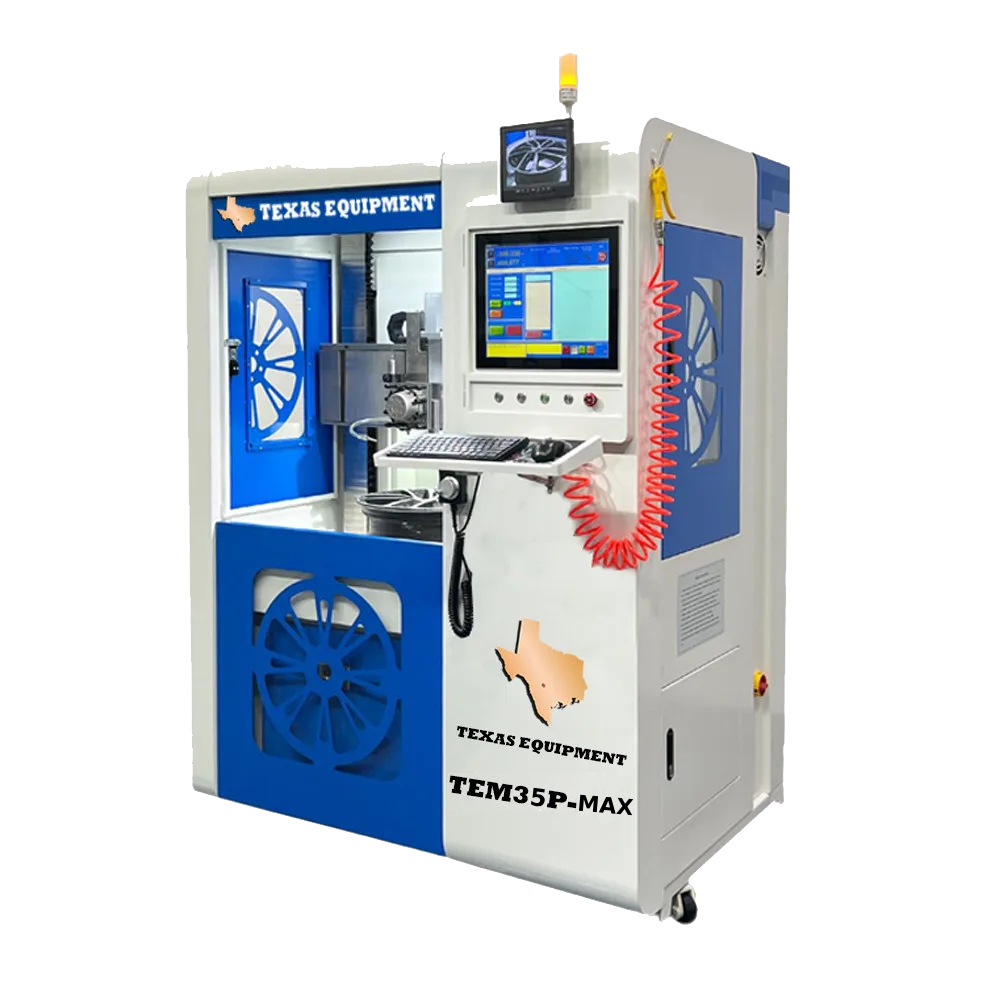

Wheel Repair Lathe TEM35P-MAX

AED 91,000.00 + VAT

OverView

Wheel Rim Repair Lathe TEM35P-MAX

The TEM35P-MAX wheel repair lathe is a new generation advanced product developed by our company with independent intellectual property rights. Building upon extensive research into market demands and valuable feedback from users of the previous TEM32P model, the TEM35P-MAX inherits proven product experience while introducing a wide range of structural and functional enhancements.

This upgraded model features significant improvements in the overall machine framework, particularly the cast iron bed and the X/Z axis structure, ensuring greater stability and machining precision. To deliver an even more refined wheel repair result and a superior user experience, the TEM35P-MAX is equipped with higher-grade components and expanded functional capabilities.

From its industrial design and advanced manufacturing techniques to the precise selection of key components, the TEM35P-MAX reflects a strong commitment to professional quality, technical excellence, and modern innovation in the field of wheel rim repair.

Add to quote
Category:
Brand:

Description

TEM35P-MAX Wheel Repair Lathe
The TEM35P-MAX is a next-generation upgraded wheel repair lathe developed by our company, featuring independent intellectual property rights. Designed in response to evolving market needs and valuable feedback from users of the previous TEM32P model, this machine represents a significant step forward in both design and functionality.

Building on mature product experience, the TEM35P-MAX introduces a comprehensive upgrade to the machine bed and axis structures. With enhanced mechanical design and precision engineering, it delivers greater stability and improved machining accuracy. The lathe adopts high-end components and integrates additional functional modules to offer users a more refined and efficient wheel repair experience.

From its industrial-grade construction to the intelligent control system and premium component selection, the TEM35P-MAX embodies our commitment to professional quality, operational excellence, and continuous innovation in the field of wheel repair technology.

Specifications



Maximum clamping wheel size 35 inch
Maximum diameter with tire on 880mm
Maximum repairable wheel thickness 550mm
X-axis effective travel 920mm
X-axis drive motor torque 6NM
Z-axis effective travel 620mm
Z-axis drive motor torque 6NM×2 (With brake function)
Maximum distance between tool post and chuck —
Main motor power / Total machine power 9KW
Spindle speed 50–1800rpm
Chuck Diameter / Number of Jaws 320mm / 3 jaws
Tool changer station 4 Station automatic tool changer
Tool change method Automatic
X/Z feed accuracy 0.001mm
Wheel detection method Ruby probe detection system(optional laser detection system)
Detection accuracy Ruby probe detection 0.001mm
Device Voltage / Frequency 380V 3ph / 50HZ
Voltage customization for different countries Support
Weight 1500KG (Net) / 1650KG (Gross)
Machine size 1690×1180×1890mm
